2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV

اسم العلامة التجارية: Firepower
رقم الطراز: MFOG-910
الـ MOQ: 1
السعر: قابل للتفاوض
شروط الدفع: L/C ، D/P ، T/T ، Western Union
القدرة على التوريد: 500/month
معلومات مفصلة
Place of Origin:
China
يتراوح:
±240 درجة/ثانية
ثبات التحيز الصفري ((10s ، 1σ):
≤0.8°/ساعة
المشي العشوائي الزاوي:
≤0.02 درجة / ساعة
عرض النطاق الترددي ثلاثي الأبعاد:
≥1000 هرتز
صفر التحيز التكرار ((1σ):
≤0.8°/ساعة
عامل مقياس اللاخطية:
≤ 1000 جزء في المئة
وزن:
≤ 150 جرام
استهلاك الطاقة:
≤1.5 واط
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
إبراز:

low cost fiber optic gyroscope,UAV fiber optic gyro,affordable VG910 gyroscope

,

UAV fiber optic gyro

,

affordable VG910 gyroscope

وصف المنتج
2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost $500 for UAV
Product Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview
The 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor (VG910) is a high-performance angular rate sensor designed for oil exploration and other demanding applications. This compact unit integrates optical, mechanical, and electronic systems into a robust package that operates based on the Sagnac effect, utilizing counter-propagating light beams through a micro-nano optical fiber coil to precisely detect angular velocity.
Key Features
  • All-solid-state design with no moving parts for exceptional reliability
  • Fast startup and long operational life (≥15 years)
  • Excellent resistance to shock (≥1500g) and vibration (≥70g)
  • Compact size and lightweight construction (≤150g)
  • Low power consumption (≤1.5W)
  • High MTBF (≥100,000 hours calculated assessment)
Performance Parameters
Parameter Specification
Range (°/s) ±240
Scale factor (mV/°/s) 47±5
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤0.8
Zero-bias repeatability (1σ, °/H) ≤0.8
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Power supply (V) 5+0.25+12
Product Diagrams
2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV 0

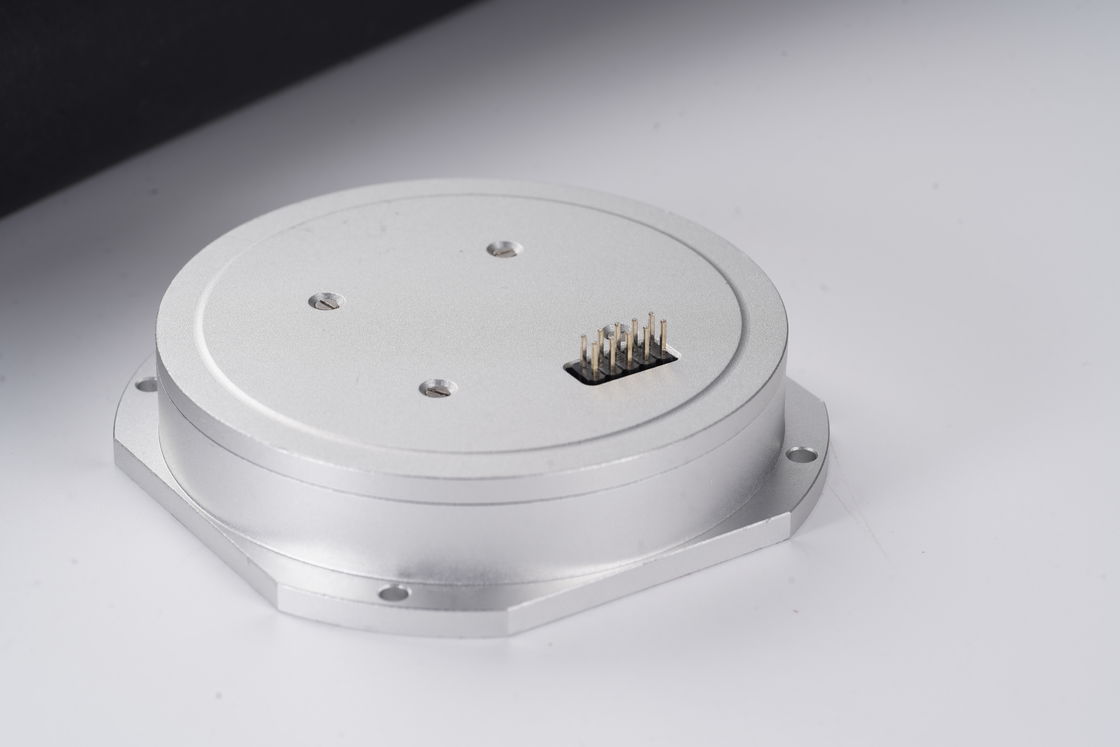

Front View
2025 Advanced VG910 Fiber Optic Gyroscope with Low Cost 500$ for UAV 1
Side View
