| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MFOG-910 |
| الـ MOQ: | 1 |
| السعر: | 1000$ |
| شروط الدفع: | L/C ، D/P ، T/T ، Western Union |
| القدرة على التوريد: | 500/شهر |
| Attribute | Value |
|---|---|
| Range | ±240°/s |
| Zero-bias stability (10s, 1σ) | ≤0.8°/h |
| Angular random walk | ≤0.02°/h |
| 3dB Bandwidth | ≥1000Hz |
| Zero-bias repeatability (1σ) | ≤0.8°/h |
| Scale factor nonlinearity | ≤1000ppm |
| Weight | ≤150g |
| Power Consumption | ≤1.5W |

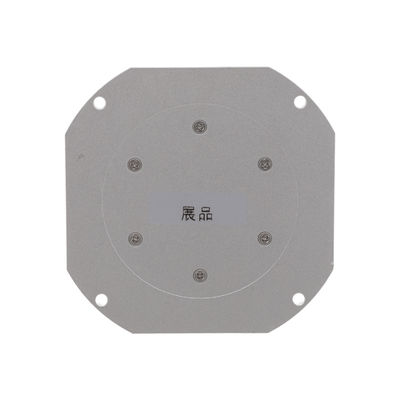

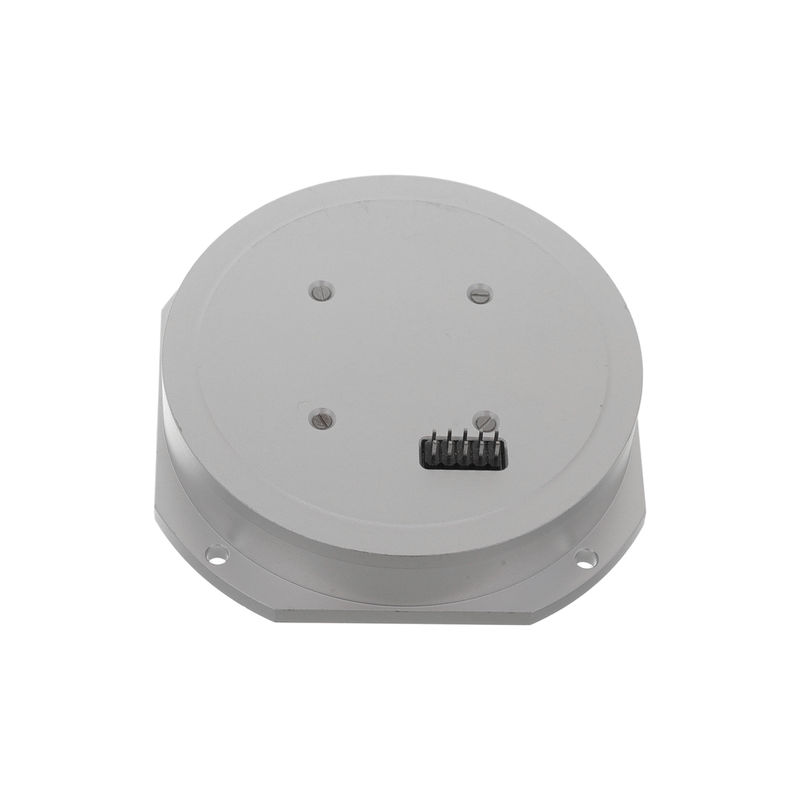

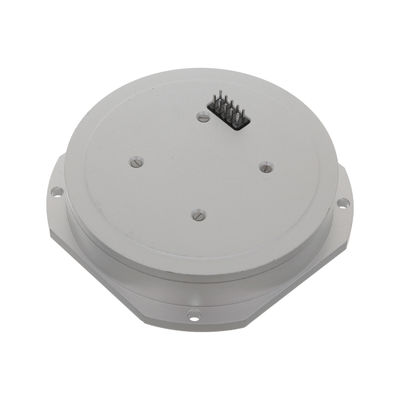

The MFOG-910 is a compact, lightweight, and robust fiber optic gyroscope designed as a replacement for the Fizoptika VG910. Utilizing the Sagnac effect, it precisely measures angular velocity through a micro-nano fiber coil with no moving or wearing parts, ensuring fast startup, long operational life, and high resistance to shock and vibration.
Ideal for UAV, autonomous navigation, robotics, aerospace, and industrial automation, the MFOG-910 delivers high-precision attitude control and inertial measurement with low power consumption and stable performance in demanding environments.
| Serial Number | Project | Performance Indicators |
|---|---|---|
| 1 | Range (°/s) | ±240 |
| 2 | Scale factor (mV/°/s) | 47±5 |
| 3 | Scale factor nonlinearity (ppm) | ≤1000 |
| 4 | Zero-bias stability (10s, 1σ, °/H) | ≤0.8 |
| 5 | Zero-bias repeatability (1σ, °/H) | ≤0.8 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk (°/√H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25+12 |
| 9 | Power Consumption (W) | ≤1.5 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
