| اسم العلامة التجارية: | 1 |
| رقم الطراز: | NF102 |
| الـ MOQ: | 1 |
| السعر: | 2000$ |
| شروط الدفع: | L/C ، D/P ، T/T ، Western Union |
| القدرة على التوريد: | 500/شهر |
| Attribute | Value |
|---|---|
| Product Name | North Finder |
| Navigation tracking error | ± 0.5° (≤ 5min, rotation speed ≤ 10°/S) |
| Tilt adaptability | ±15° |
| Azimuth error | ≤ 0.5° |
| Interface | RS422 |
| Power supply | DC 9 ~ 12V |
| Weight | ≤ 400 g |
| Dimension | 60×60×60mm |
| Project | Unit | Industrial grade MF-102 |
|---|---|---|
| Output mode | RS422/RS232 | |
| Connector | J30JM-15ZKP | |
| Power consumption | W | ≤1 |
| Azimuth error | ° | ±0.5 |
| Navigation tracking error | ° | ± 0.5 (≤ 5min, rotation speed ≤ 10°/S) |
| Tilt adaptability | ° | ±15 |

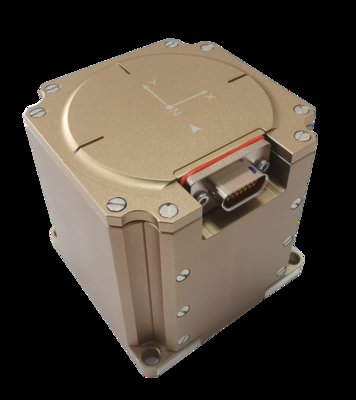

The Fiber Optic Gyroscope North Finder provides rapid, autonomous determination of true north using advanced FOG technology. It measures the Earth's rotation to deliver high-precision azimuth and attitude information for UAVs, autonomous vehicles, robotics, marine vessels, and GPS-denied navigation systems.
