| اسم العلامة التجارية: | avic |
| رقم الطراز: | MFOG103PT |
| الـ MOQ: | 1 |
| السعر: | 900 USD |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 1000/شهر |

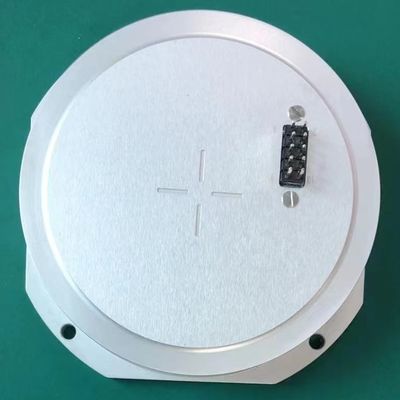

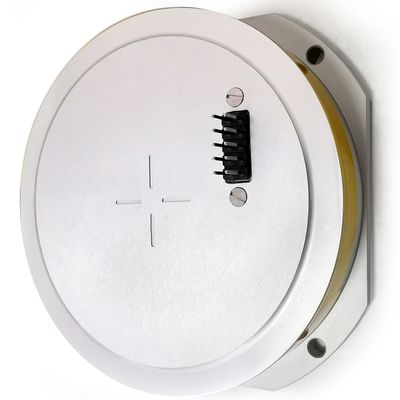

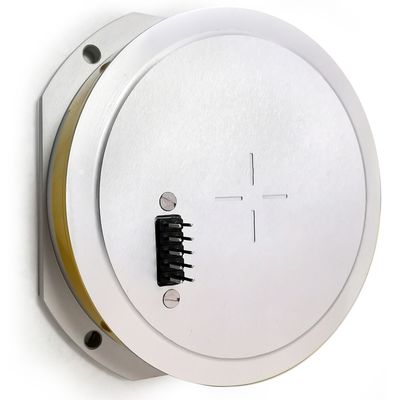

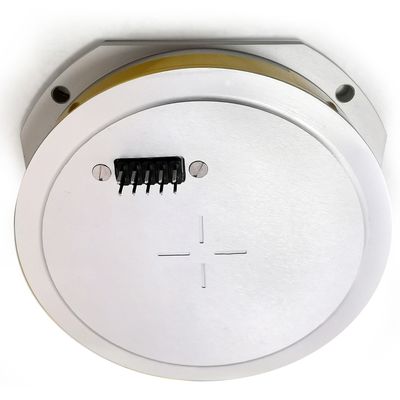

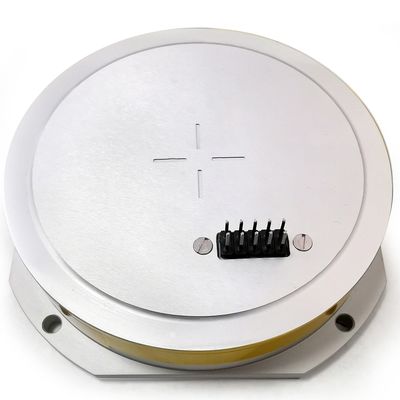

1deg/h Bias FOG Analog of VG103PT Gyroscope Sensor
Product Description
MFOG-103 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.
Key Features
Applications
This single-axis gyro delivers fast response times in a compact, lightweight package, making it particularly suitable for:
The gyro's vibration resistance and temperature compensation features ensure reliable performance in challenging operating conditions.
Technical Specifications
| Serial number | Project | Performance indicators |
|---|---|---|
| 1 | Range (°/s) | ±350 |
| 2 | Scale factor (mV/ o /s) | 6±0.6 |
| 3 | Zero-bias stability (10s, 1σ, o /H) | ≤1 |
| 4 | Zero-bias repeatability (1σ, o /H) | ≤1 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk ( o /√ H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25 |
| 9 | Power Consumption (W) | ≤1 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Service Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
Customization Options
Our single-axis gyroscope can be customized to meet specific application requirements, featuring:
Frequently Asked Questions
