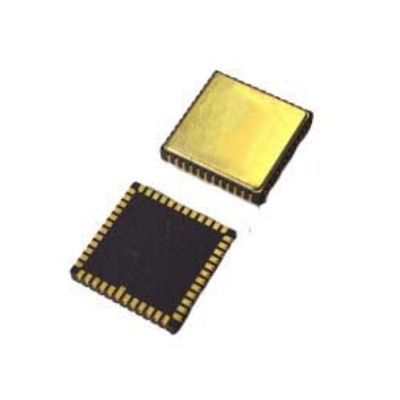

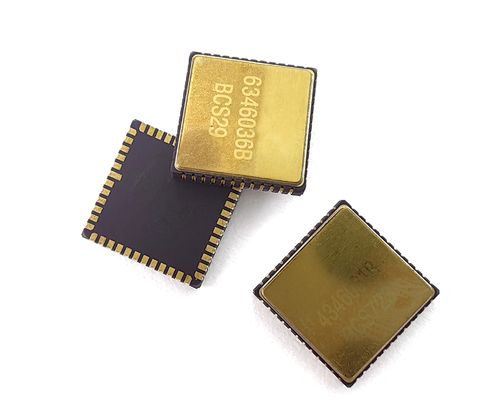

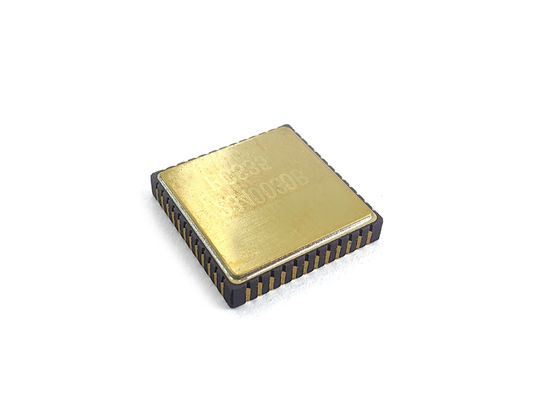

High Stability MEMS Gyroscope Chip for MEMS IMU & Inertial Navigation Systems

High Stability MEMS Gyroscope Chip for MEMS IMU & Inertial Navigation Systems

اسم العلامة التجارية: Firepower
رقم الطراز: MGZ221HC
الـ MOQ: 1
السعر: قابل للتفاوض
شروط الدفع: تي/تي
القدرة على التوريد: 500/شهر
معلومات مفصلة
مكان المنشأ:
الصين
اسم المنتج:
جيرو ثنائي الفينيل متعدد الكلور
يتراوح:
400 درجة / ثانية
عرض الفرقة:
> 200 هرتز
دقة:
24 بت
عامل المقياس:
16000 رطل / درجة / ثانية
تأخير (مخصص):
<1.5 مللي ثانية
عدم الاستقرار التحيز:
0.5 درجة/ساعة
تفاصيل التغليف:
إسفنج + صندوق
القدرة على العرض:
500/شهر
إبراز:

MEMS gyroscope chip for IMU,high stability gyroscope for navigation,MEMS inertial navigation system chip

,

high stability gyroscope for navigation

,

MEMS inertial navigation system chip

وصف المنتج

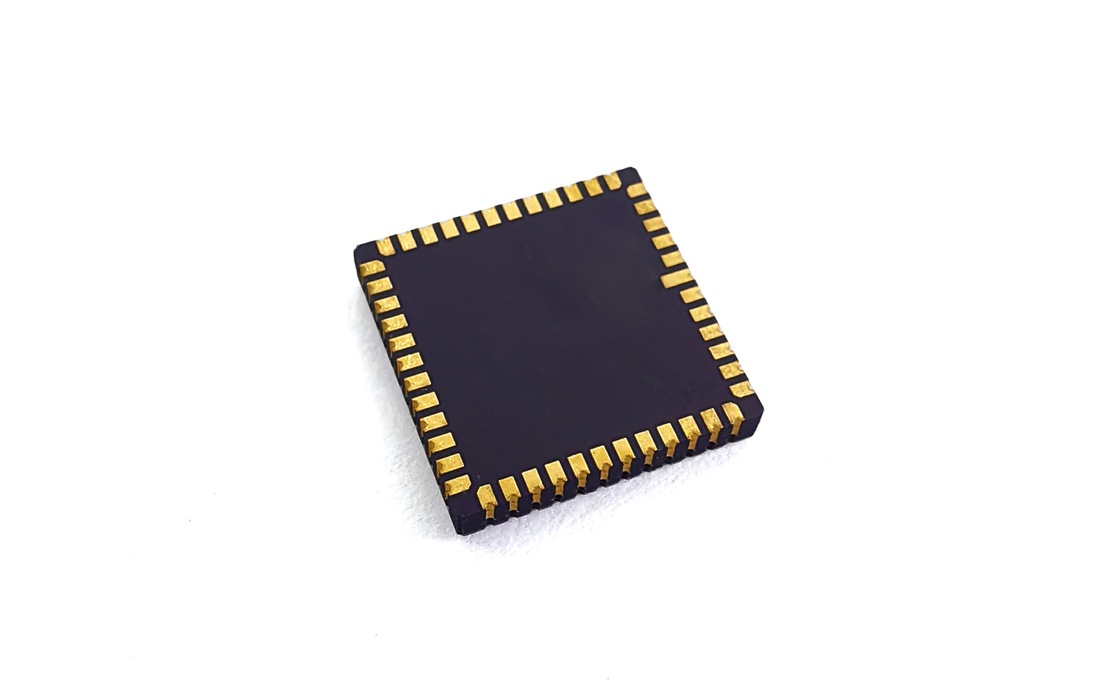

High Stability MEMS Gyroscope Chip for MEMS IMU & Inertial Navigation Systems
MEMS Gyro Chips Fiber Optic Gyro PCB for High Precision Navigation
The decoupling capacitors for pins VCP, VREF, VBUF, and VREG should be placed as close to the pins as possible, and the equivalent resistance of the traces should be minimized.
  • The other ends of the decoupling capacitors for VREF, VBUF, and VREG are connected to the nearest AVSS_LN and then to signal ground via a magnetic bead.
  • The decoupling capacitors for VCC and VIO are also placed close to the corresponding pins. When VCC is in normal operation, the overall current will be about 35 mA, which requires a wide PCB trace to ensure voltage stability.
  • For smooth assembly of the device, try to avoid routing under the package.
  • Locate components to avoid areas of stress concentration. It is necessary to avoid large heat dissipation elements and areas with external mechanical contact, extrusion and pulling, as well as areas where positioning screws are prone to warping during overall installation.
High Stability MEMS Gyroscope Chip for MEMS IMU & Inertial Navigation Systems 0
Product Parameters
Performance MGZ332HC-P1 MGZ332HC-P5 MGZ318HC-A1 MGZ221HC-A4 MGZ330HC-O1 MGZ330HC-A1
Range deg/s 400 400 400 400 400 100
Band Width @3DB customized Hz 90 180 200 200 300 50
Output accuracy(digital SPI) bits 24 24 24 24 24 24
Output rate(ODR)(customized) Hz 12K 12K 12K 12K 12K 12K
Delay(customized) ms <3 <1.5 <1.5 <1.5 <1 <6
Bias stability deg/hr(1o) <0.05 <0.05 <0.1 <0.5 <0.1 <0.02
Bias stability (1σ 10s) deg/hr(1o) <0.5 <0.5 <1 <5 <1 <0.1
Bias stability (1σ 1s) deg/hr(1o) <1.5 <1.5 <3 <15 <3 <0.3
Bias error over temperature (1σ) deg/hr(1o) <5 <5 <10 <30 10 5
Bias temperature variations, calibrated(1σ) deg/hr(1o) <0.5 <0.5 <1 <10 <1 <0.5
Bias repeatability deg/hr(1o) <0.5 <0.5 <0.5 <3 <0.3 <0.1
Scale factor at 25°C lsb/deg/s 20000 20000 16000 16000 20000 80000
Scale factor repeatability (1σ) ppm(1o) <20ppm <20ppm <20ppm <20ppm <100ppm <100ppm
Scale factor vs temperature (1σ) ppm(1o) 100ppm 100ppm <100ppm <100ppm <300ppm <300ppm
Scale factor non-linearity (1σ) ppm 100ppm 100ppm <150ppm <150ppm <300ppm <300ppm
Angular random walk(ARW) °/√h <0.025 <0.025 <0.05 <0.25 <0.05 <0.005
Noise(Peak to Peak) deg/s <0.15 <0.3 <0.35 <0.4 <0.25 <0.015
GValue sensitivity °/hr/g <1 <1 <1 <3 <1 <1
Vibration rectification error(12gRMS,20-2000) °/hr/g(rms) <1 <1 <1 <3 <1 <1
Power-on time (valid data) s 750m
Sensor Resonant Frequency hz 10.5k-13.5K
Environmental suitability
  • Impact (power on): 500g, 1ms
  • Impact resistance (power off): 10000g, 10ms
  • Vibration(power on): 18g rms (20Hz to 2kHz)
  • Working temperature: -40℃ to +85℃
  • Store temperature: -55℃ to +125℃
  • Supply voltage: 5±0.25V
  • Current consumption: 45ma
High Stability MEMS Gyroscope Chip for MEMS IMU & Inertial Navigation Systems 1
Installation
High-performance MEMS gyroscope is a high-precision test equipment. In order to achieve the best effect of design, it is recommended to consider the following aspects when installing the device on the PCB board:
  • In order to evaluate and optimize the placement of the sensor on the PCB, it is recommended to consider the following aspects and use additional tools during the design phase:
    • On the thermal side
    • For mechanical stress: bending measurement and/or finite element simulation
    • Robustness to impact: After the PCB of the target application has been soldered in the recommended manner, a drop test is performed
  • It is recommended to maintain a reasonable distance between the mounting position of the sensor on the PCB and the key points described below (the exact value of "reasonable distance" depends on many customer-specific variables and must therefore be determined on a case-by-case basis):
    • It is generally recommended to keep the PCB thickness to a minimum (recommended: 1.6 ~ 2.0 mm), because the inherent stress of a thin PCB board is small
    • It is not recommended to place the sensor directly under the button or close to the button because of mechanical stress
    • It is not recommended to place the sensor near a very hot spot, such as a controller or graphics chip, as this can heat the PCB board and cause the temperature of the sensor to rise
