| اسم العلامة التجارية: | FIREPOWER |
| رقم الطراز: | NF102 |
| الـ MOQ: | 1 |
| السعر: | 2000$ |
| شروط الدفع: | ل / c، / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

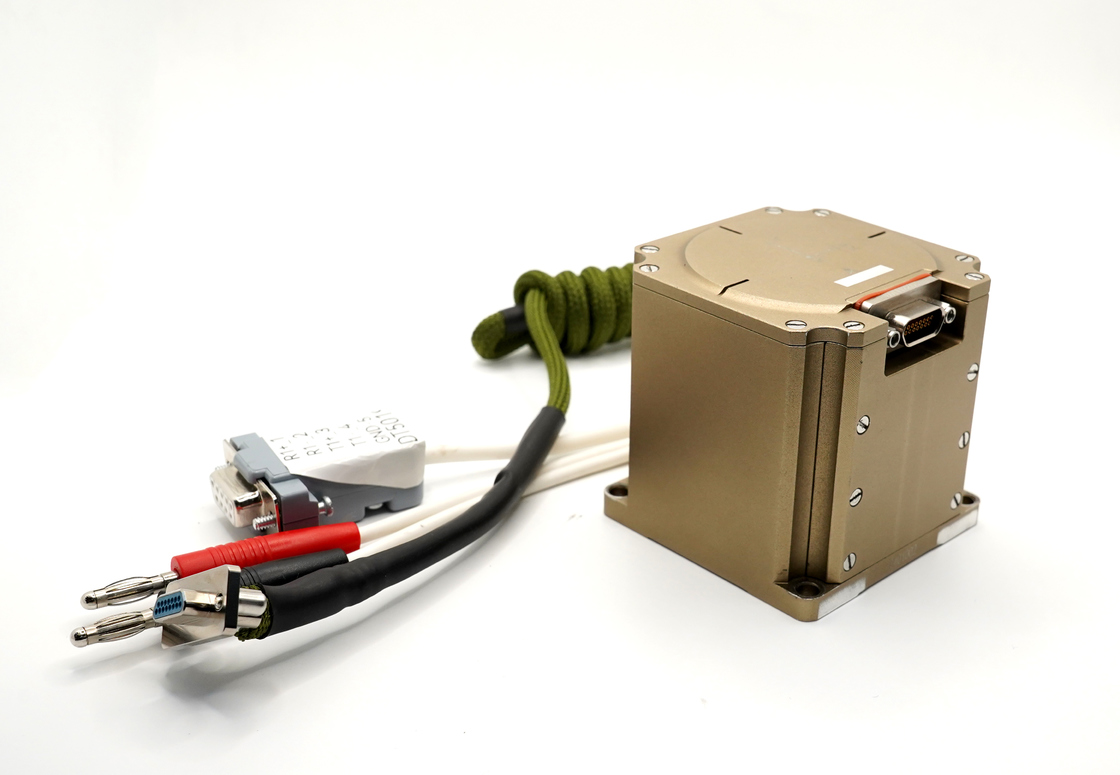

The Fiber Optic Gyroscope (FOG) North Finder is a precision instrument used to determine true north quickly and accurately without relying on GPS or magnetic fields. It measures the Earth's rotation angular velocity through high-precision fiber optic gyroscopes and calculates azimuth information for navigation and orientation applications. Suitable for land vehicles, ships, and defense systems requiring reliable north-seeking performance.
| Project | Unit | Industrial grade NF-102 |
|---|---|---|
| Output mode | RS422/RS232 | |
| Connector | J30JM-15ZKP | |
| Power consumption | W | ≤1 |
| Azimuth error | ° | ±0.7 |
| Navigation tracking error | ° | ±0.7 (≤5min, rotation speed ≤10°/s) |
| Tilt adaptability | ° | ±15 |
| Serial number | Definition | Type | Interface |
|---|---|---|---|
| 1 | R- | Input | RS422 user interface |
| 2 | R+ | Input | |
| 3 | T+ | Output | |
| 4 | T- | Output | |
| 5 | IO+ | Input | External North Seeking Switch |
| 6 | IO- | Output | |
| 7 | +12VGND | Input | Power ground |
| 8 | +12VGND | Input | |
| 9 | RS232_GND | GND | RS232 user interface |
| 10 | RS232_TX | Output | |
| 11 | RS232_RX | Input | |
| 12 | NC | Reserved | |
| 13 | NC | Reserved | |
| 14 | +12V | Input | 12 Power supply input |
| 15 | +12V | Input |
