| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | مفوغ-1703 |
| الـ MOQ: | 1 |
| السعر: | 700USD |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على التوريد: | 500/شهر |

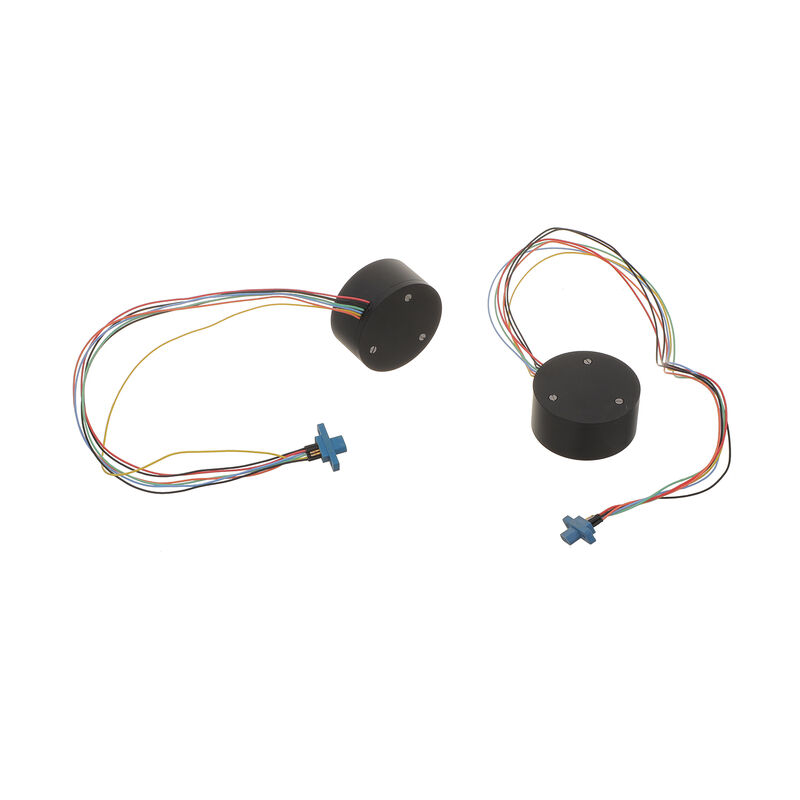

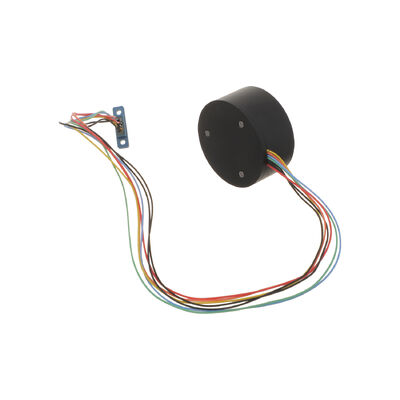

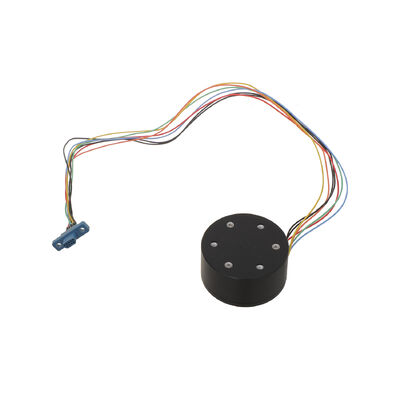

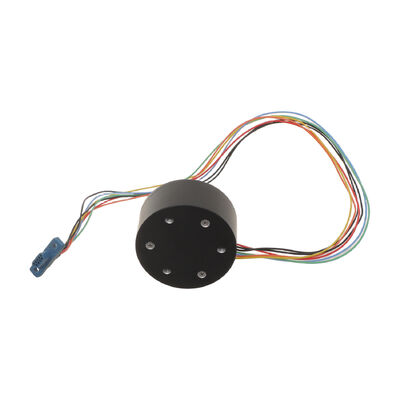

The MFOG-1703 is a solid-state micro-nano fiber optic gyroscope that delivers precise angular rate data through advanced internal detection, processing, and closed-loop control of optical phase differences. This robust system integrates an optical path module, detection and control electronics, and a durable mechanical structure.
Features standardized interface and form factor for seamless replacement of Fizoptika VG1703
| Parameter | Specification |
|---|---|
| Range (°/s) | ±150 |
| Scale Factor (mV/°/s) | 12±1.2 |
| Zero-bias Stability (10s, 1σ, °/h) | ≤1 |
| Zero-bias Repeatability (1σ, °/h) | ≤1 |
| Angular Random Walk (°/h1/2) | ≤0.02 |
| Zero-bias Temperature Sensitivity (μV/°C) | ≤1 |
| Scale Factor Temperature Sensitivity (ppm/°C) | ≤300 |
| 3dB Bandwidth (Hz) | ≥450 |
| Impact (g) | 1200, 1ms, half sine |
| Power Supply (V) | 5 ± 0.25 |
| Power Consumption (W) | ≤1 |
| Dimensions (mm) | φ40 × 20 |
