| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MFOG-40 |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

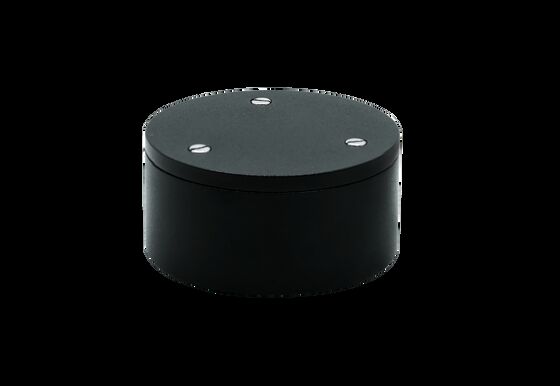

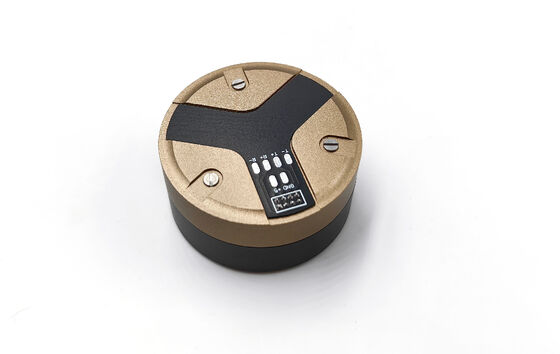

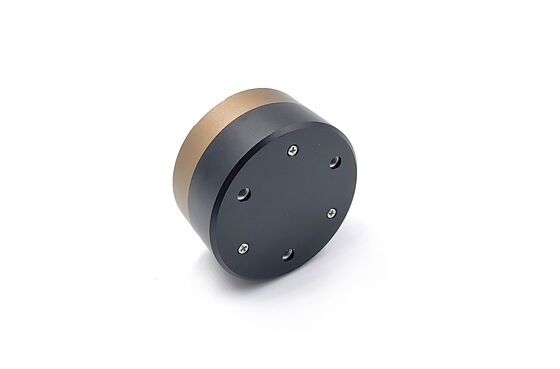

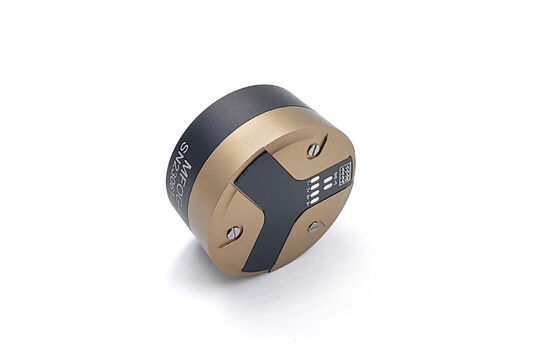

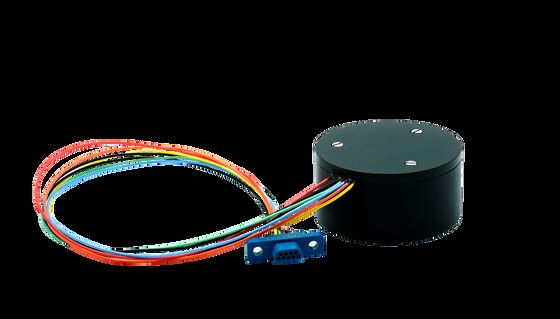

The MFOG-40 micro-nano fiber optic gyroscope is a high-precision angular rate sensor integrating optics, mechanics, and electronics. Based on the Sagnac effect, it delivers accurate attitude measurement with zero moving parts, lightweight design (≤40g), and compact dimensions (φ40*20mm), ideal for UAVs, robotics, and precision platform stabilization.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale Factor Nonlinearity (ppm) | ≤500 |
| Zero-bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-bias Repeatability (1σ, °/H) | ≤0.8 |
| Angular Random Walk (°/H1/2) | ≤0.02 |
| Zero-bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power Supply (V) | 5+0.15 |
| Power Consumption (W) | ≤1.5 |
| Dimensions (mm) | φ40*20 |
