| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MFOG-910 |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

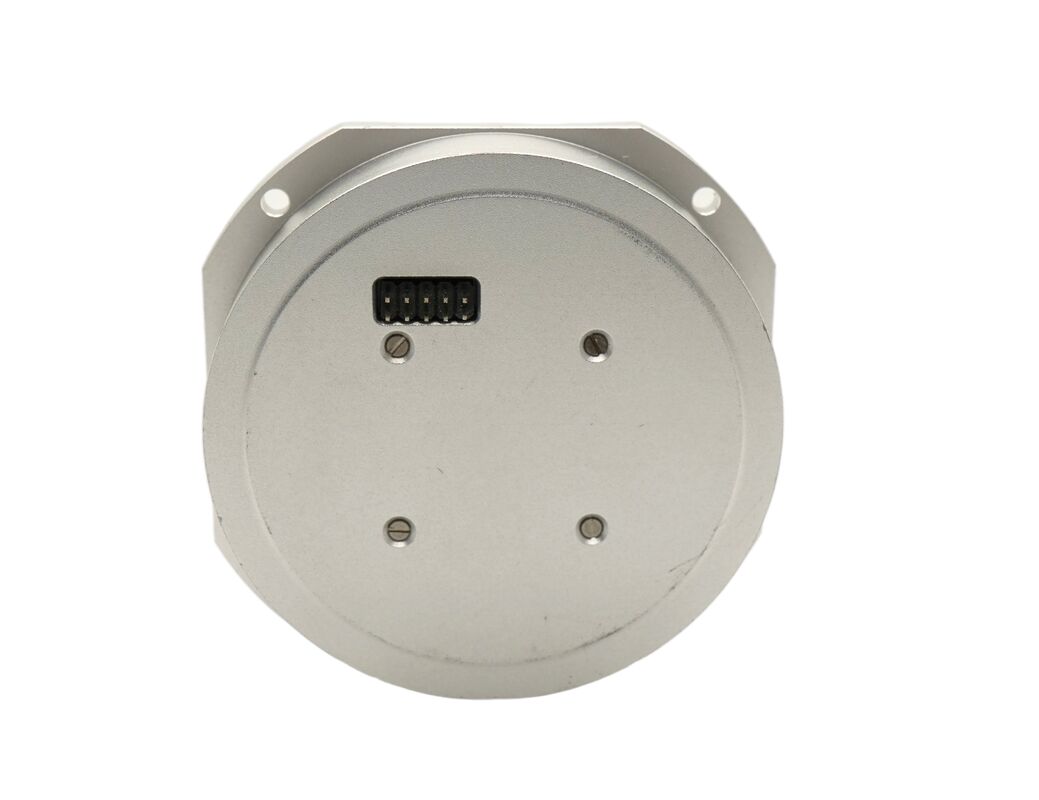

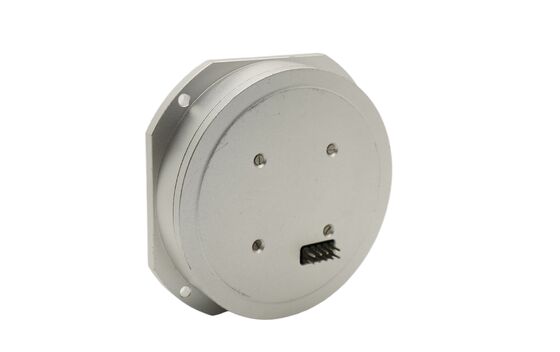

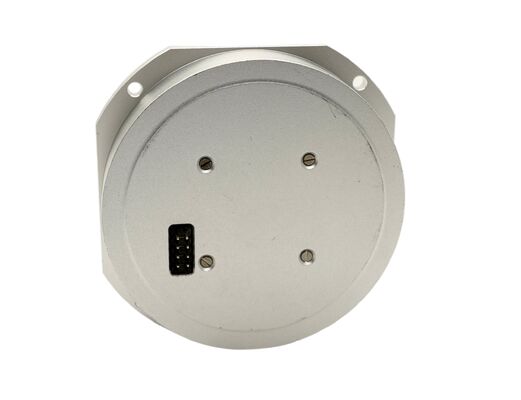

Introducing the MFOG-910 micro-nano fiber optic gyroscope, an advanced sensor that integrates optics, mechanics, and electronics. Engineered for precision, this gyroscope operates effectively in temperatures from -40℃ to +70℃ and is ideal for robotics and UAV navigation, featuring a scale factor of 47±5 mV/°/s.
This product features a simple structure with no moving parts or wear components, ensuring fast startup, compact size, and lightweight design. It is designed for attitude control and measurement applications in various carrier systems.
| Parameter | Performance Indicators |
|---|---|
| Range (°/s) | ±240 |
| Scale Factor (mV/°/s) | 47±5 |
| Scale Factor Nonlinearity (ppm) | ≤1000 |
| Zero-bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-bias Repeatability (1σ, °/H) | ≤0.8 |
| 3dB Bandwidth (Hz) | ≥1000 |
| Random Walk (°/√H) | ≤0.02 |
| Power Supply (V) | 5±0.25±12 |
| Power Consumption (W) | ≤1.5 |
| Impact (g) | ≥1500 |
| Acceleration (g) | ≥70 |
| Life (years) | ≥15 |
| MTBF | ≥100,000 |
