| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | F50 لفائف الألياف الضوئية قائمة بذاتها |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

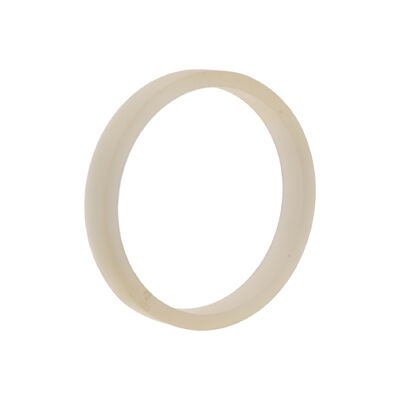

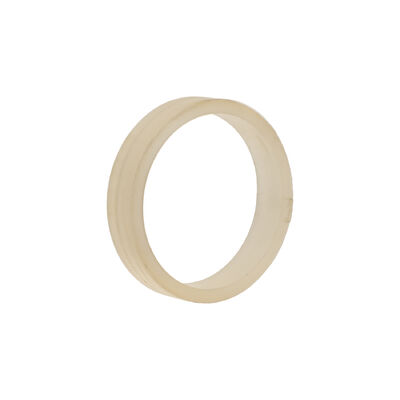

Our φ50 low-precision (mid-accuracy) fiber coil is engineered specifically for closed-loop FOG systems. Utilizing 135µm thin-diameter fiber technology, this coil delivers superior winding density and exceptional temperature performance. The design minimizes crosstalk and bias drift, ensuring reliable gyroscope heading maintenance under thermal stress conditions.
Primarily designed for closed-loop fiber optic gyroscopes with approximately 50mm diameter requirements.
| Feature | Unit | Specification |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45 to 80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |
We offer comprehensive customization services for optic fiber coils. Geometric dimensions, length specifications, and performance parameters can be tailored to meet specific application requirements and system integration needs.
