| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | F50 لفائف الألياف الضوئية قائمة بذاتها |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

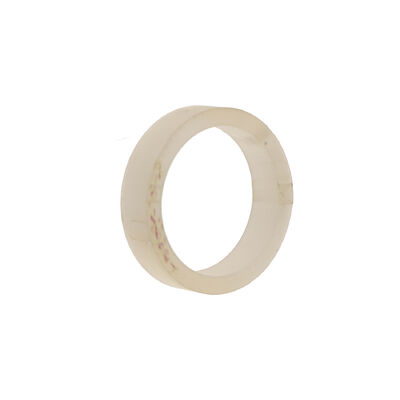

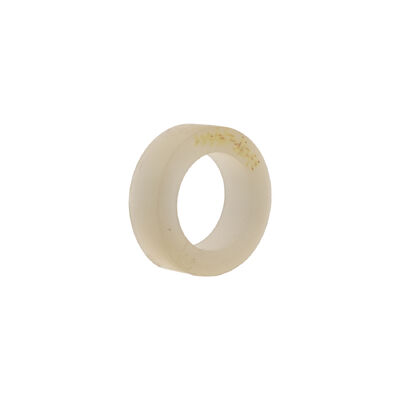

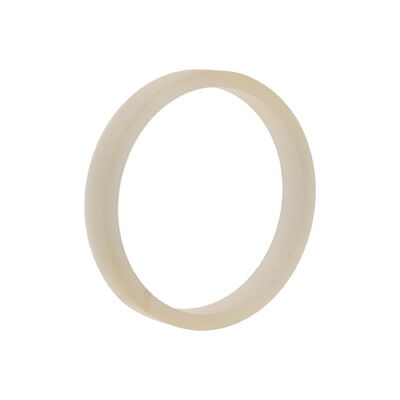

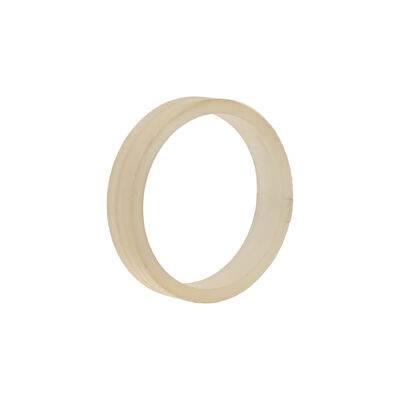

Manufactured with precision winding and UV-cured adhesives, this φ50 coil ensures high reliability, low signal loss, and vibration resistance. A perfect choice for high-accuracy gyroscope systems used in military and industrial environments.
Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
This optical fiber coil adopts a multi-pole symmetric winding method and uses 135μm thin diameter optical fibers with UV-cured adhesive. The ring exhibits excellent temperature and vibration performance, and can be mass-produced with good product consistency.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |

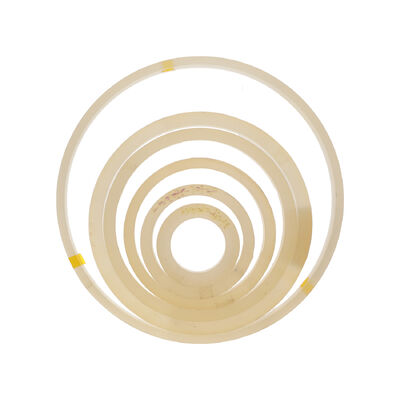

The geometric dimensions, length, and performance of the optical fiber coil can be designed according to customer's application requirements.
