| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | F50 لفائف الألياف الضوئية قائمة بذاتها |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

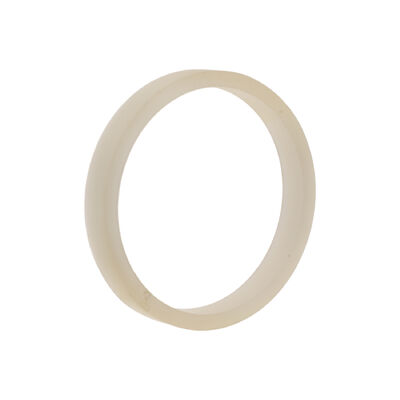

Designed specifically for closed-loop fiber optic gyroscopes with a 50mm diameter, this fiber coil delivers reliable medium-precision performance. Manufactured using 135µm thin-diameter fiber and a robust UV-cured adhesive, the 36-layer coil ensures minimal signal distortion.
It maintains a full-temperature crosstalk of ≤ -20 dB and exceptional bias stability, making it ideal for systems requiring consistent performance in variable environments.
Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) * 39.0mm(OD) * 9.2mm(H) |
The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
