| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MFOG-24 |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

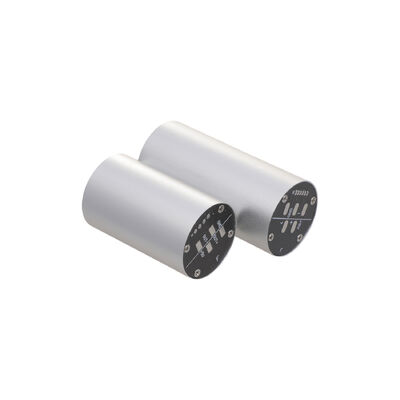

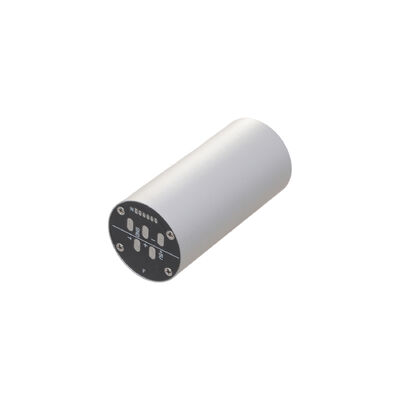

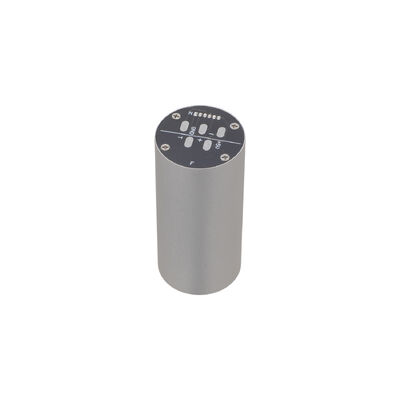

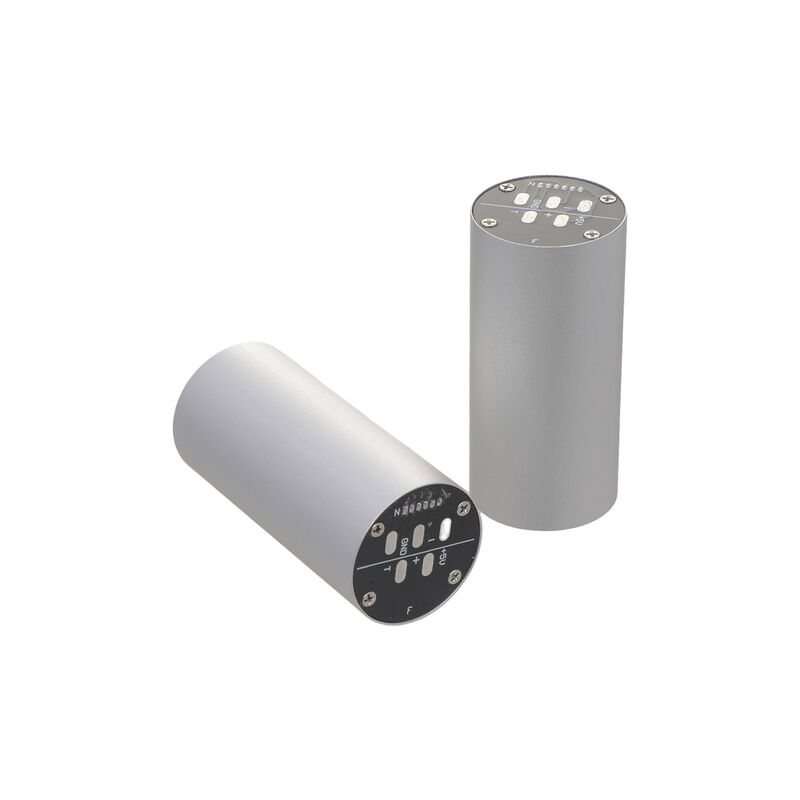

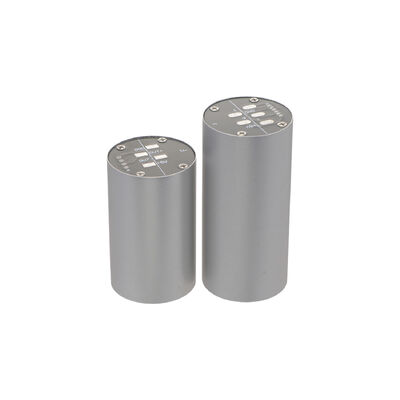

The MFOG-24 Micro FOG is engineered for precision navigation and control applications, delivering exceptional performance in demanding operational environments.
Ideal for AGV navigation systems, robotics platforms, unmanned vehicles, and autonomous control systems requiring high-accuracy orientation data.
| Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|
| Range (°/s) | ±500 | ±300 |
| Scale Factor | 3600 (LSB/°/s) | 7 mV/°/s |
| Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| Angular Random Walk (°/h)1/2 | ≤0.03 | ≤0.04 |
| Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| Power Supply (V) | 5±0.15 | 5±0.15 |
| Power Consumption (W) | ≤1.5 | ≤0.7 |
| Dimensions (mm) | φ24 × 39 | |
