| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MFOG-24 |
| الـ MOQ: | 1 |
| السعر: | 700$ |
| شروط الدفع: | خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون |
| القدرة على التوريد: | 500/شهر |

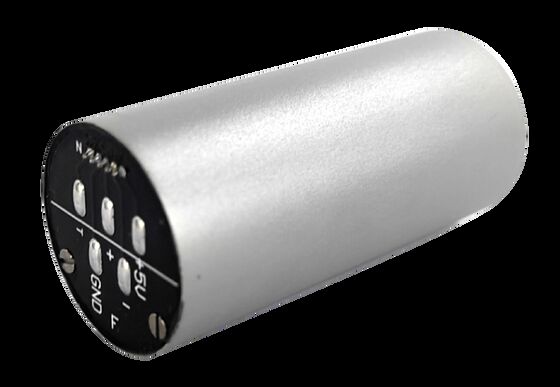

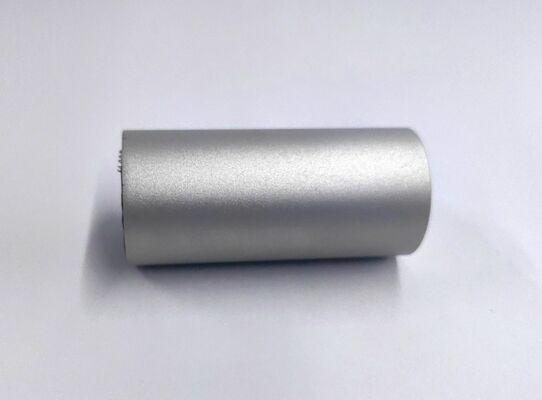

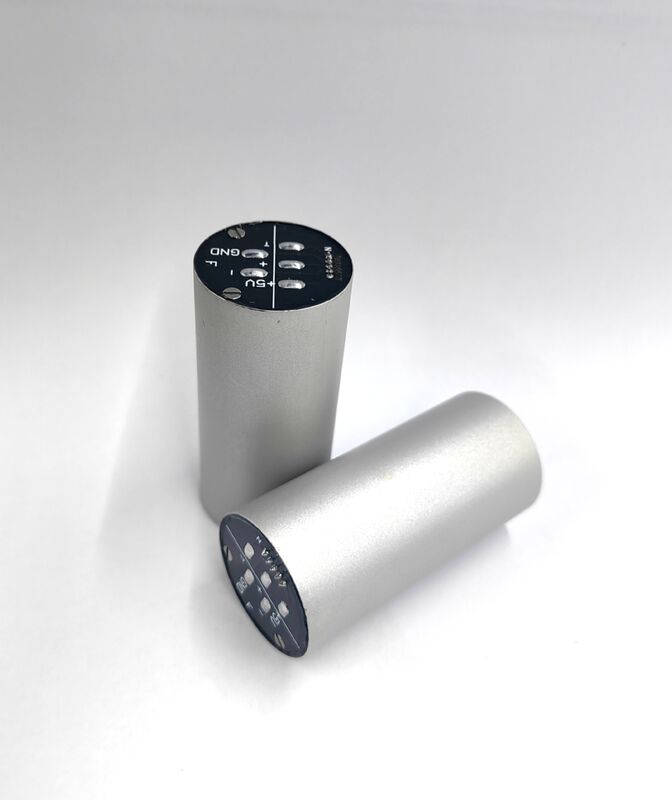

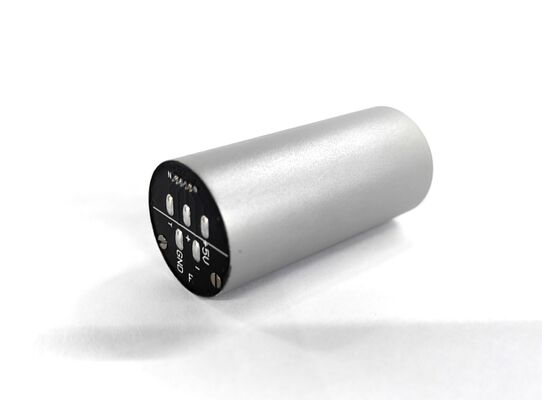

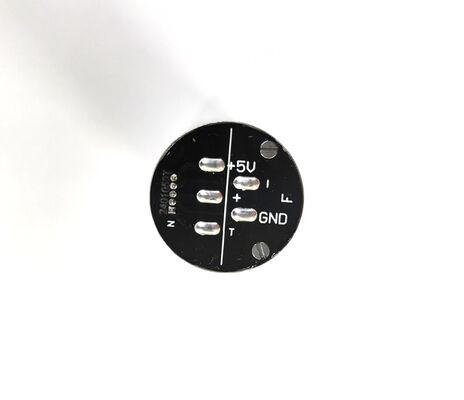

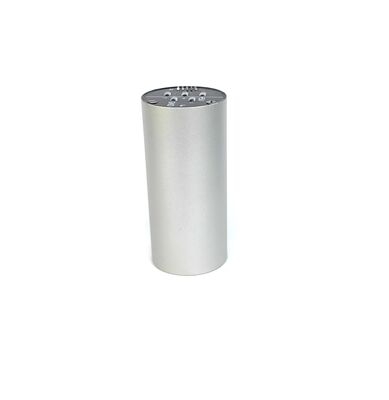

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a compact, high-performance angular rate sensor based on the Sagnac effect. This advanced system integrates optical, mechanical, and electronic components to detect rotational motion by processing phase differences between counter-propagating light beams.
With no moving parts, rapid startup capability, and exceptional environmental resistance, this gyroscope is ideally suited for modern navigation platforms that demand high reliability in demanding applications.
| Serial No. | Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|---|
| 1 | Range (°/s) | ±500 | ±300 |
| 2 | Scale Factor | 3600 (LSB/o/s) | 7mv/o/s |
| 3 | Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| 4 | Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| 5 | Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| 6 | Angular Random Walk (°/h 1/2) | ≤0.03 | ≤0.04 |
| 7 | Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 8 | 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| 9 | Power Supply (V) | 5+0.15 | 5+0.15 |
| 10 | Power Consumption (W) | ≤1.5 | ≤0.7 |
| 11 | Dimensions (mm) | φ24*39 | φ24*39 |
