| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MGZ318HC-A1 |
| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 500/شهر |

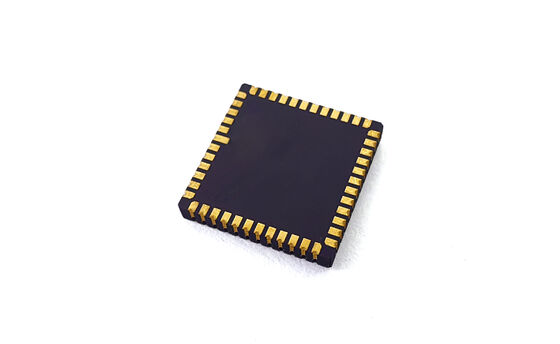

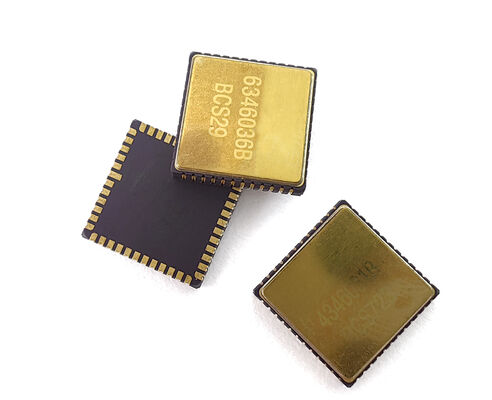

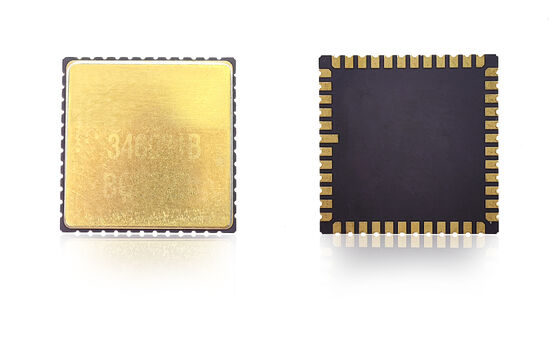

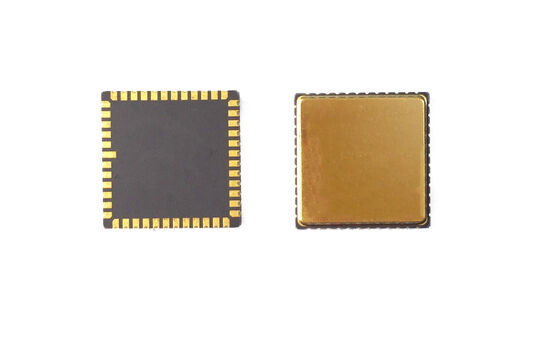

Our MEMS gyroscope chip is a high-precision angular rate sensor designed for demanding motion sensing and navigation applications. With low bias drift, high stability, and strong resistance to shock and vibration, it ensures reliable performance in complex environments. Its compact design and digital interfaces enable easy integration into IMU, UAV, and robotics systems. OEM customization is available to meet your exact requirements.
| Performance | Unit | MGZ332HC-P1 | MGZ332HC-P5 | MGZ318HC-A1 | MGZ221HC-A4 | MGZ330HC-O1 | MGZ330HC-A1 |
|---|---|---|---|---|---|---|---|
| Range | deg/s | 400 | 400 | 400 | 400 | 400 | 100 |
| Band Width @3DB (customized) | Hz | 90 | 180 | 200 | 200 | 300 | 50 |
| Output accuracy (digital SPI) | bits | 24 | 24 | 24 | 24 | 24 | 24 |
| Output rate (ODR) (customized) | Hz | 12K | 12K | 12K | 12K | 12K | 12K |
| Delay (customized) | ms | <3 | <1.5 | <1.5 | <1.5 | <1 | <6 |
| Bias stability | deg/hr(1σ) | <0.05 | <0.05 | <0.1 | <0.5 | <0.1 | <0.02 |
| Bias stability (1σ 10s) | deg/hr(1σ) | <0.5 | <0.5 | <1 | <5 | <1 | <0.1 |
| Bias error over temperature (1σ) | deg/hr(1σ) | <5 | <5 | <10 | <30 | 10 | 5 |
| Scale factor at 25°C | lsb/deg/s | 20000 | 20000 | 16000 | 16000 | 20000 | 80000 |
| Scale factor repeatability (1σ) | ppm(1σ) | <20ppm | <20ppm | <20ppm | <20ppm | <100ppm | <100ppm |
| Scale factor vs temperature (1σ) | ppm(1σ) | 100ppm | 100ppm | <150ppm | <150ppm | <300ppm | <300ppm |
| Scale factor non-linearity (1σ) | ppm | 100ppm | 100ppm | <150ppm | <150ppm | <300ppm | <300ppm |
| Angular random walk (ARW) | °/√h | <0.025 | <0.025 | <0.05 | <0.25 | <0.05 | <0.005 |
| Noise (Peak to Peak) | deg/s | <0.15 | <0.3 | <0.35 | <0.4 | <0.25 | <0.015 |
| G Value sensitivity | °/hr/g | <1 | <1 | <1 | <3 | <1 | <1 |
