| اسم العلامة التجارية: | Firepower |
| رقم الطراز: | MGZ221HC-A4 |
| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 500/شهر |
| Parameter | Unit | MGZ221HC-A4 |
|---|---|---|
| Measuring Range | deg/s | 400°/s |
| Bandwidth (-3dB, customizable) | Hz | 200Hz |
| Output Accuracy (Digital SPI) | bits | 24 |
| Output Rate ODR (customizable) | Hz | 12K |
| Delay (customizable) | ms | <1.5ms |
| Bias Stability (Allan variance) | deg/h (1-sigma) | <0.5°/h |
| Bias Stability (1-sigma, 10s) | deg/h (1-sigma) | <5°/h |
| Angular Random Walk (ARW) | deg/sqrt-h | <0.25°/√h |
| Scale Factor at 25°C | lsb/deg/s | 16000 lsb/deg/s |
| Scale Factor Repeatability (1-sigma) | ppm (1-sigma) | <100ppm |
| Scale Factor vs Temperature (1-sigma) | ppm (1-sigma) | <300ppm |
| Scale Factor Nonlinearity (1-sigma) | ppm | <300ppm |
| Noise (Peak to Peak) | deg/s | <0.4°/s |
| G-Value Sensitivity | deg/h/g | <3 |
| Power-On Time (Valid Data) | s | 750m |
| Sensor Resonant Frequency | Hz | 10.5k-13.5K |
| Impact (Powered On) | 500g, 1ms | |
| Impact Resistance (Powered Off) | 10000g, 10ms | |
| Vibration (Powered On) | 18g RMS (20Hz-2kHz) | |
| Operating Temperature | -40°C ~ +85°C | |
| Storage Temperature | -55°C ~ +125°C | |
| Supply Voltage | 5 +/- 0.25V | |
| Current Consumption | 45mA |

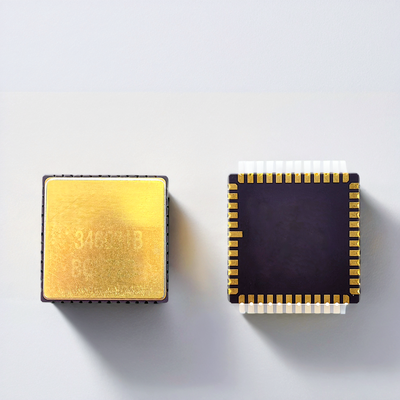

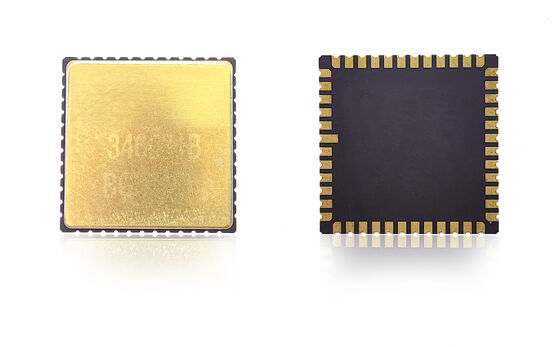

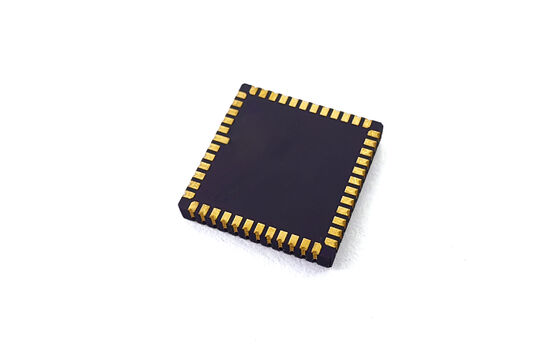

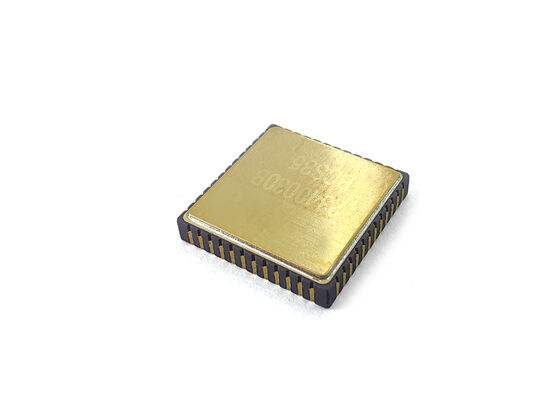

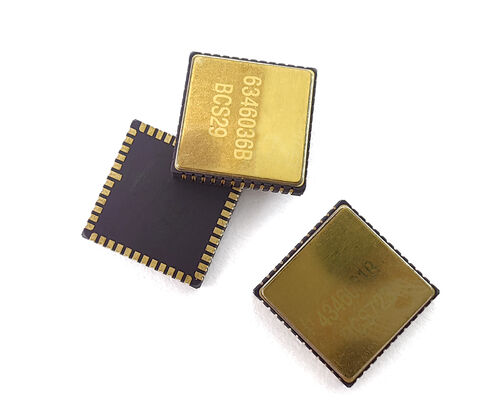

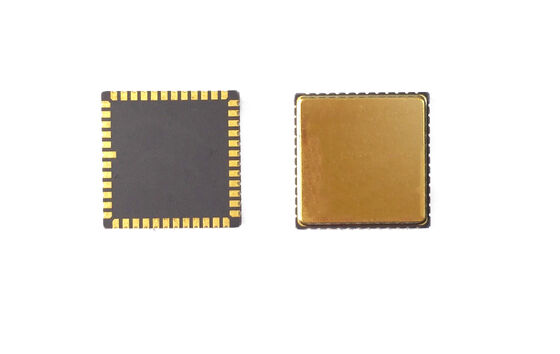

The MGZ221HC-A4 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China. Minimum order quantity 1 piece, sample delivery within 7 days. Bulk supply capacity 500 pieces per month. Payment terms T/T. For price inquiry or to request samples, please contact us.
